EX-PROOF ELECTRONIC EARTING SYSTEM (CORTEM)
Product Code:GRD-4200

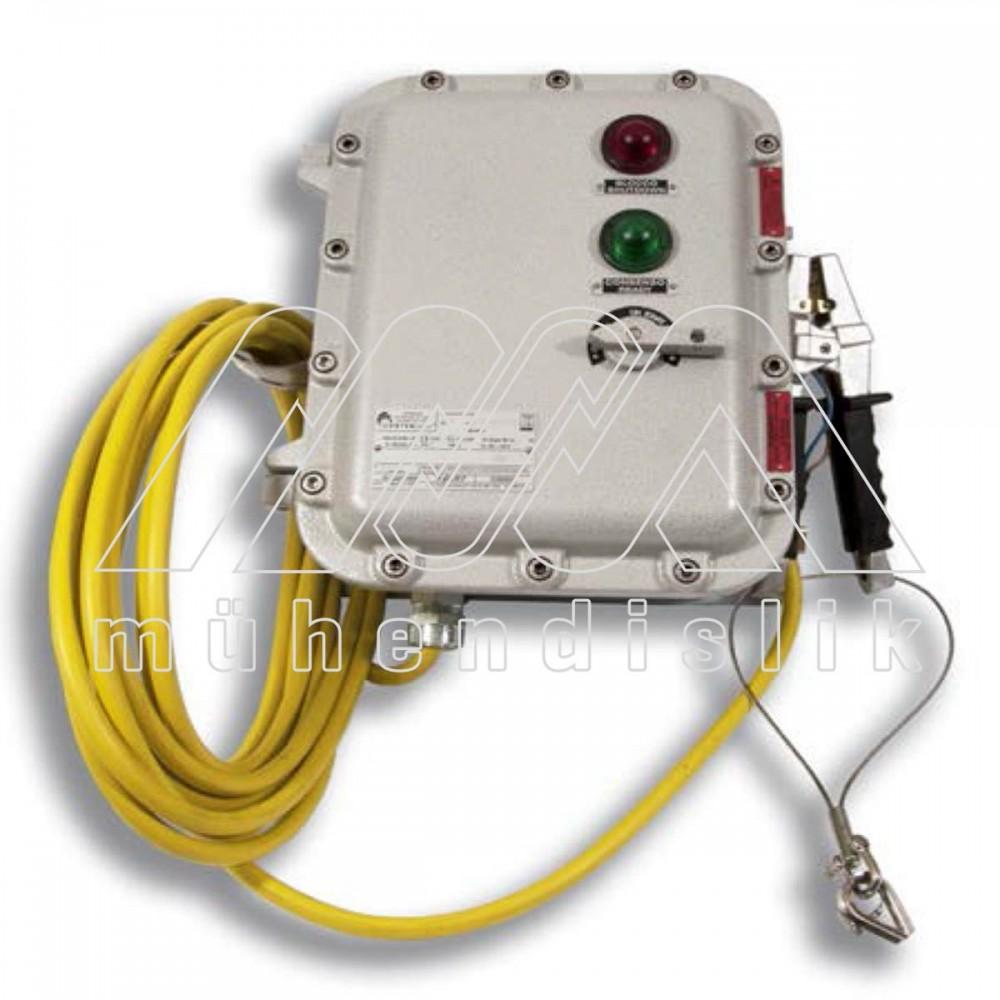

GRD-4200 Electronic Earthing System
Inputs: 2x3/4” fittings. Complete with a PLG2G blind plug .
Cable gland: For non-armored cable, internally sealed, thread Ø 3/4” ISO7/1
Cable: Yellow with trim in rubber resistant to oil and chemical substances. Suitable for extremely high mechanical stresses. Length 8 m.

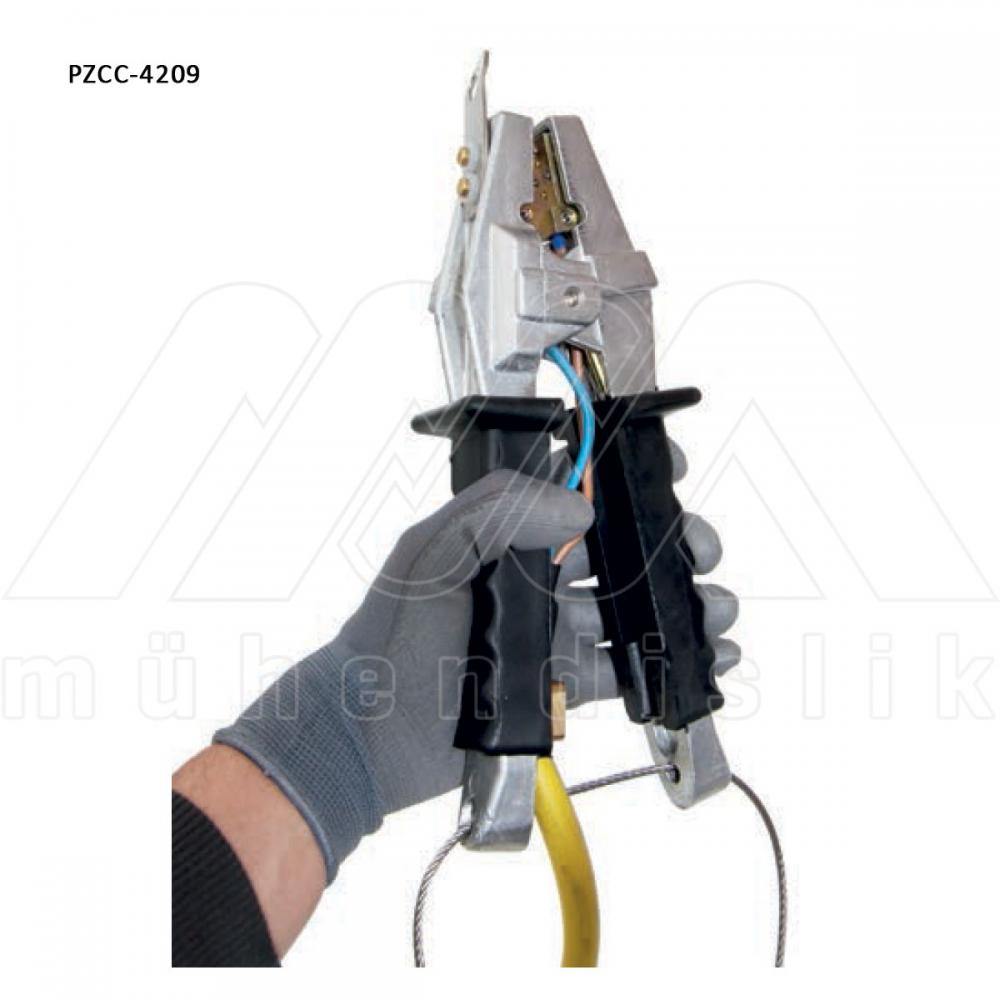

Pliers: Bipolar, casting with aluminium with handles in neoprene, jaws with steel tips, auto-releasing. 16 mm opening.
Bracket for pliers: In stainless steel.
Description
GAS | II 2(1) G - Ex d [ia Ga] ia IIB+H2 T6 Gb | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | II 2(1) D - Ex tb [ia Da] ia IIIC T85°C Db | -20°C ÷ +55°C | CESI 04 ATEX 129 | IECEx CES 14.0035X |
GRD-4200 SERIES
Product Code | Material of the j. box | Number of pliers | Power supply | Rated frequency | Weight |
GRD-4200 | Aluminium | One plier | 230 Vac | 50 - 60 Hz | 20,0 Kg |
GRD-4200/110 | 110 Vac | 50 - 60 Hz | 20,0 Kg | ||
GRD-4200/24 | 24 Vac/dc | 0 / 50 - 60 Hz | 20, Kg |
GAS | II 2GD - Ex db eb mb [ia Ga] IIC T5 Gb | IP66 | Zone 1 - Zone 21 - Zone 2 - Zone 22 | |
DUST | Ex tb [ia Da] IIIC T85°C Da | -40°C ÷ +50°C | CML 20 ATEX 3235X | IECEx CML 20.0144X |

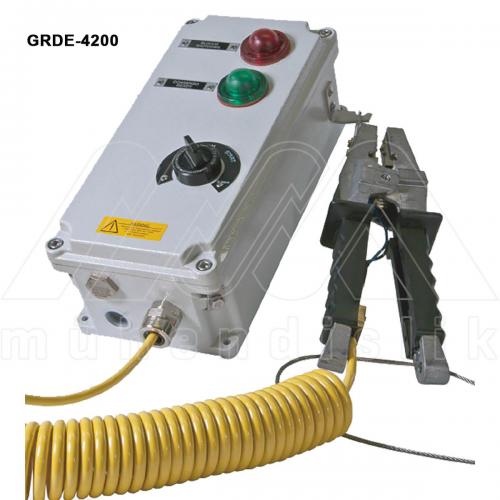

GRDE-4200 SERIES
Product Code | Material of the j. box | Number of pliers | Power supply | Rated frequency | Weight |
GRDE-4200 | Aluminium | One plier | 220-240 Vac | 50 - 60 Hz | 3,25 Kg |
GRDE-4200-12 | 12 Vac/dc | 0 / 50 - 60 Hz | 3,25 Kg | ||
GRDE-4200-24 | 24 Vac/dc | 0 / 50 - 60 Hz | 3,25 Kg | ||
GRDE-4200-110 | 110 Vac | 50 - 60 Hz | 3,25 Kg |

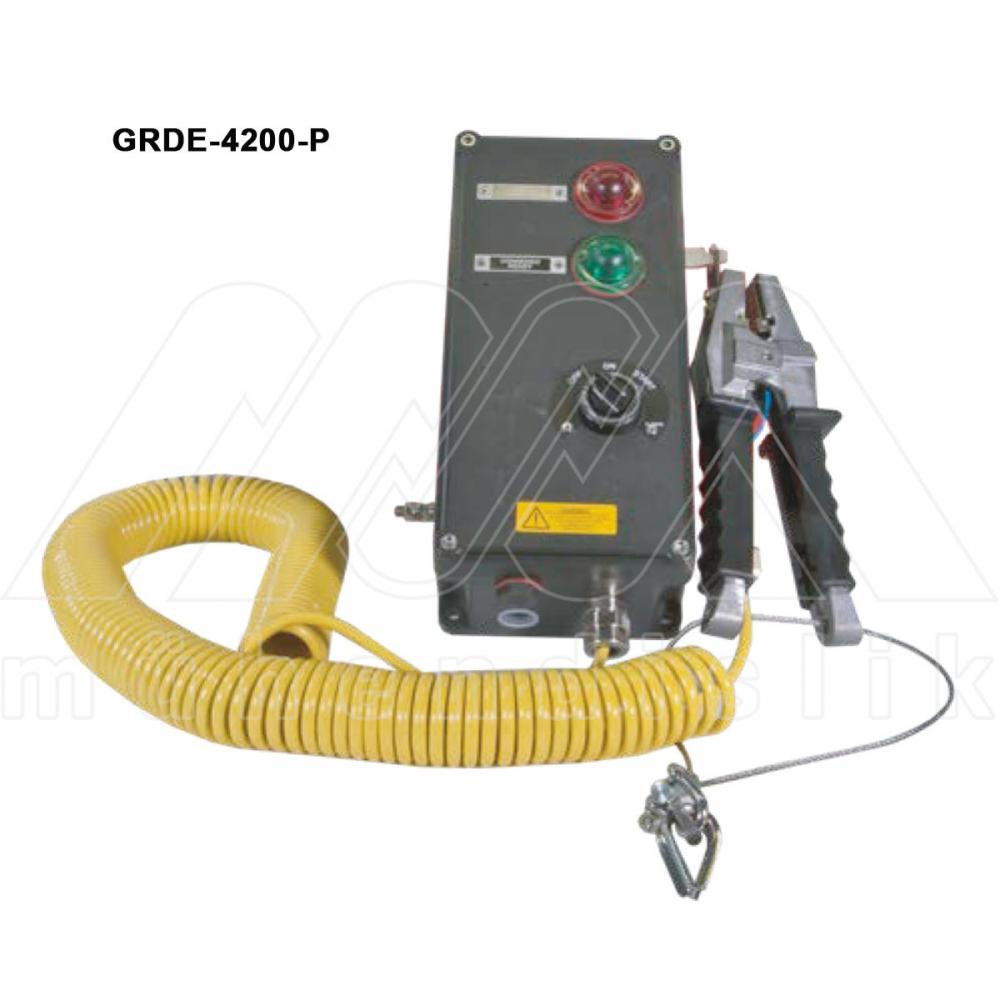

GRD-4200-P SERIES
Product Code | Material of the j. box | Number of pliers | Power supply | Rated frequency | Weight |
GRDE-4200-P | Polyester | One plier | 220-240 Vac | 50 - 60 Hz | 2,80 Kg |
GRDE-4200-P-12 | 12 Vac/dc | 0 / 50 - 60 Hz | 2,80 Kg | ||
GRDE-4200-P-24 | 24 Vac/dc | 0 / 50 - 60 Hz | 2,80 Kg | ||
GRDE-4200-P-110 | 110 Vac | 50 - 60 Hz | 2,80 Kg |
