EX-PROOF VERTICAL SEALING FITTINGS (MSM EX)
Product Code:M-EYS

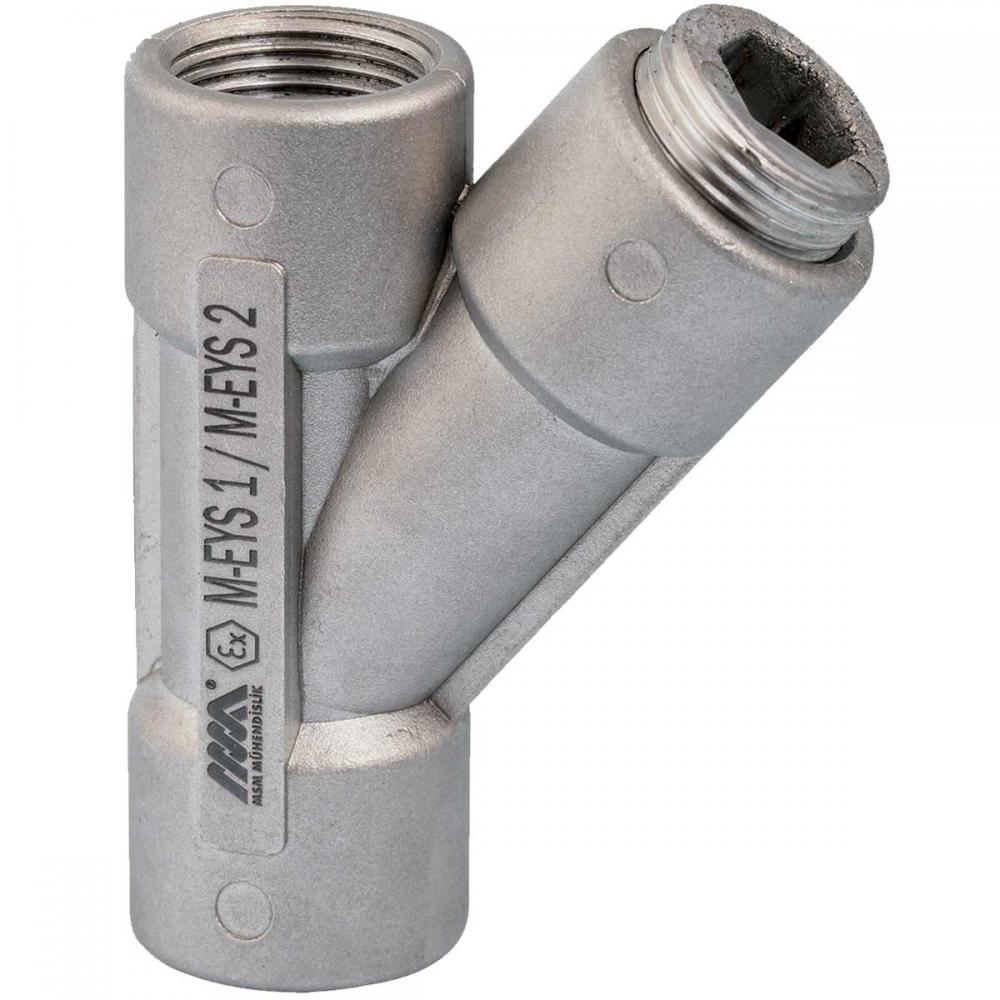

- Ex-proof M-EYS type vertical stops are made of light alloy aluminum casting material.
- The M-EYS type stopper is selected according to the conduit size to be used in the vertical installation and is installed together with its auxiliary accessories (conduit fitting, nipple, etc.).
- There are a total of 3 holes on the ex-proof M-EYS type vertical stop. Two of these holes are for conduit Inlet and outlet, and the other is for MCK-1000 freezer spill. MCK has 1 PLG type ex-proof blind plug on it to close the hole to be poured.
- For the MCK-1000 freezer gram to be poured into the M-EYS type ex-proof vertical stops and its preparation, you can get detailed information from the data Sheet.
Description
GAS | II2G Ex db IIC Gb | IP66 | Zone 1- Zone 21- Zone 2- Zone 22 | |
DUST | II2D Ex tb IIIC Db | IP66 | -40°C ÷ +80°C | IEP 21 ATEX 0910U |

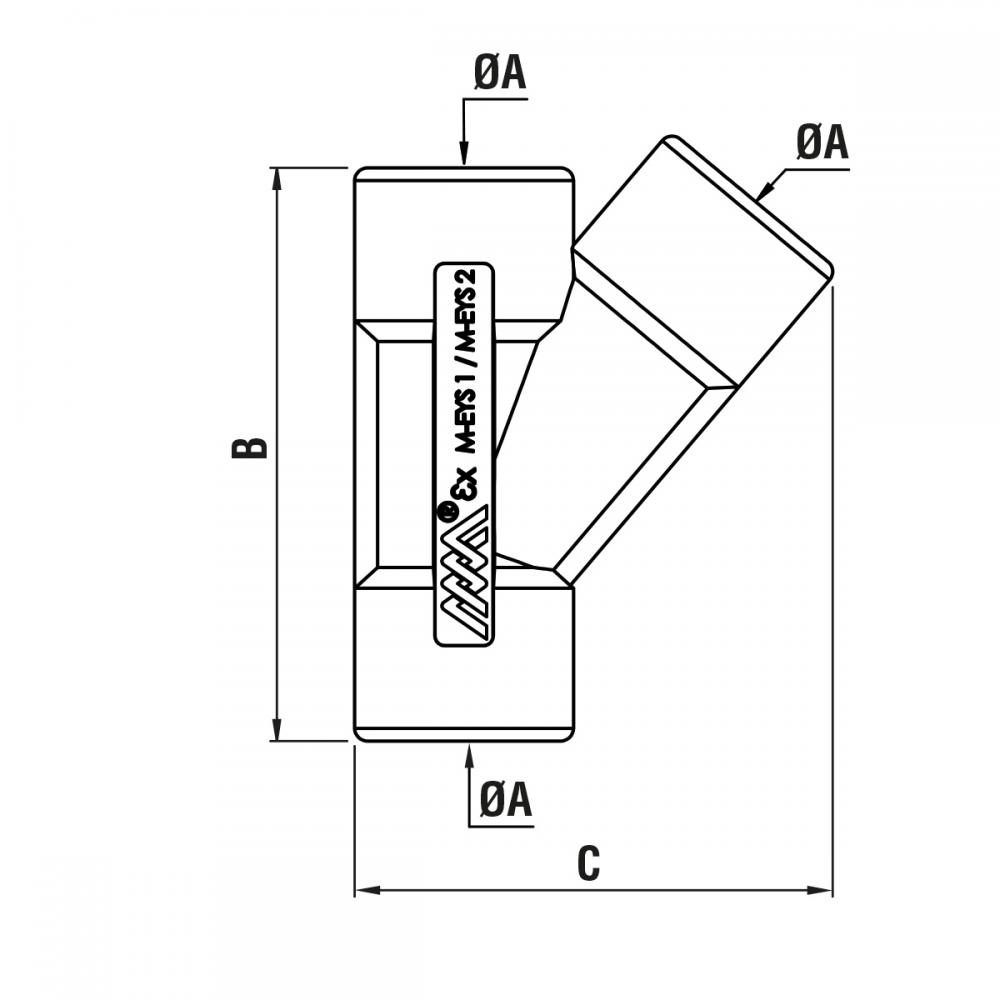

Code | Thread Size | B | C | MCK | U.Weight |
|---|---|---|---|---|---|
M-EYS-1N | 1/2” NPT | 90 | 74 | 0,050 | 0,150 |
M-EYS-2N | 3/4” NPT | 90 | 74 | 0,050 | 0,150 |
Code | Thread Size | B | C | MCK | U.Weight |
|---|---|---|---|---|---|
M-EYS-1M | M20x1,5 | 90 | 74 | 0,050 | 0,150 |
M-EYS-2M | M25x1,5 | 90 | 74 | 0,050 | 0,150 |
